Product Description

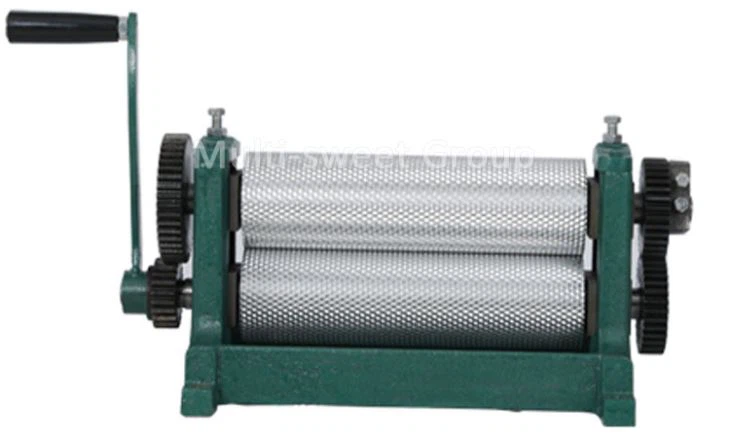

Introduction of Best Quality Beeswax Foundation Machine
1. This machine makes it possible to produce foundation sheets in a single operation
by the casting method.
2. The liquid wax is fed to the machine from a tank with a capacity of approx. 130kg
(in case of need, tanks with a capacity of up to 250 kg are available) through an inlet
tank.
3. As the wax arrives between the cylinders, it congeals to form a wide foundation
band that is cut to length and width on the attached cutting machine.
4. The desired width is adjusted by moving the round knives as required, whereas the
length is adjusted by means of a counting preselector, the preset figure being the
length in millimeters.
5. Deviations in length and width are less than 1 mm.
6. The foundation sheets are stacked on a lifting table from where they can be
removed for packing. At low temperatures, cast foundation sheets are not as elastic as rolled foundation sheets.
Cell size: 4.9mm, 5.4mm, etc according to request
Technical Parameter of Best Quality Beeswax Foundation Machine
| Model | M310E |
| Cell size | 5.4mm(4.9mm or 5.1mm or as request) |
| Water Cooler Tank | Keep cool the roller and not need external water more |
| Thermometer | Water and wax temperature are continuously under controlled by digital thermometer |
| Dimension of foundation sheet | Desired width is adjusted by moving the round knives as required and the lenght is adjusted by digital counter sensor on control pannel. |
| Power supply | 380V or 220V.3KW |
| Rorate speed | 3r/min |
| Lifting Table | The foundation sheets are stacked on a lifting table |
| Warranty | 1 year for any damage and technical unless caused by operating errors or carelessness or negligence |
| Size of machine | 2800*950*620mm |
| Weight of machine | 785kg |
| Roller size | 170*350mm |
Contact Information of Best Quality Beeswax Foundation Machine
We can design machines according to customers' need. If you want to learn more information, please contact us at any time.
